VMC1580
The VMC1580 is a state – of – the – art vertical milling machine, meticulously engineered to meet the diverse and demanding needs of modern manufacturing. Its robust construction, combined with cutting – edge technologies, makes it a reliable choice for a wide range of machining applications, from aerospace precision parts production to complex mold and die manufacturing.
- Intuitive and Smart Operation Interface
- Speed Spindle for Unmatched Machining Power
- Ultra – Precise Motion Control for Tightest Tolerances
HANDEMO
Parameters
| Product model | VMC1580 | Control system | KND |
|---|---|---|---|
| Workbench size | 1600×800mm | Y-axis fast moving speed | 20 m/min |
| Maximum allowable load | 1500kg | Z-axis fast moving speed | 16 m/min |
| T-slot size | 7-22-110 | Feed speed | 1-10000 mm/min |
| X-axis | 1500mm | Tool Magazine Type | Disc Type |
| Y-axis | 800mm | Tool Magazine Capacity | 24 |
| Z-axis | 700mm | Tool Change Time | 2.5s |
| Distance from spindle end to worktable | 160-860mm | Accuracy test standard | JISB6336-4: 2000/ GB/T18400.4-2010 |
| Distance from spindle center to Z-axis guide surface | 855mm | X/Y/Z axis | 0.008mm |
| Taper hole (7:24) | BT50-155 | X/Y/Z axis repeatability | 0.005mm |
| Speed range | 6000 rpm | Dimensions (length × width × height) | 4300×3200×2800 mm |
| Spindle motor power | 15KW | Approximate gross weight of machine tool | 10000kg |
| X-axis fast moving speed | 20 m/min | Chip removal | 1.Double-sided internal screw conveyor 2.Chain chip conveyor |
HANDEMO
Support custom services
Moving column type
vertical machining center
Double moving column
vertical machining center
Double action column boring
horizontal machining center
MH320Grinding machine
SMX85 double-sided
milling machine
Planiscope
HANDEMO
Features

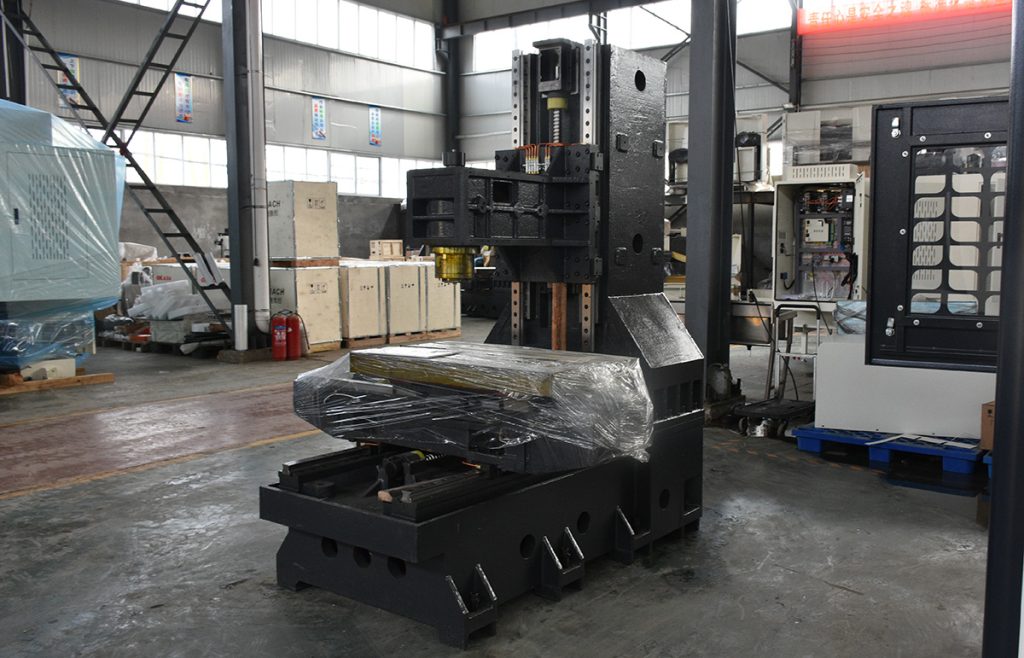

High Rigidity Structure
Reinforced cast iron base & dual-ball screw drives
Ensure stability during heavy cutting operations.
High - Speed Spindle for Unmatched Machining Power
The VMC1580 is equipped with a high – performance spindle that can reach speeds of up to 6000 RPM. This enables it to effortlessly handle a wide variety of materials, from soft aluminum to hardened steel.
Advanced Tooling System
The VMC1580 comes with an advanced tooling system that includes a 24 – position tool magazine. This allows for quick and seamless tool changes, reducing non – productive time.
Advanced Control System
Optional CNC system: Fanuc/Siemens/Syntec/GSK, the operation interface is simple and intuitive, the operation is simple and easy to use, even novice operators can quickly get started.
HANDEMO
Application Areas
Aerospace
Automotive
Medical Device Manufacturing
- 24/7 online reception service
- On-site installation
- 5-year warranty
