VMC1370
The VMC1370 is a cutting – edge vertical milling machine, meticulously engineered to meet the diverse and demanding needs of modern manufacturing. Its robust construction, combined with state – of – the – art technologies, makes it a reliable choice for a wide range of machining applications, from aerospace precision parts production to complex mold and die manufacturing.
- Advanced Tooling System for Enhanced Machining Efficiency
- Ultra – Precise Motion Control for Tight Tolerances
- High – Torque, High – Speed Spindle for Exceptional Machining Power
HANDEMO
Parameters
| Product model | VMC1370 | Control system | KND |
|---|---|---|---|
| Workbench size | 1400×700mm | Y-axis fast moving speed | 24 m/min |
| Maximum allowable load | 800kg | Z-axis fast moving speed | 18 m/min |
| T-slot size | 5-18-130 | Feed speed | 1-10000 mm/min |
| X-axis | 1300mm | Tool Magazine Type | Disc Type |
| Y-axis | 700mm | Tool Magazine Capacity | 24 |
| Z-axis | 750mm | Tool Change Time | 2.5s |
| Distance from spindle end to worktable | 120-870mm | Accuracy test standard | JISB6336-4: 2000/ GB/T18400.4-2010 |
| Distance from spindle center to Z-axis guide surface | 722mm | X/Y/Z axis | 0.008mm |
| Taper hole (7:24) | BT40-150 | X/Y/Z axis repeatability | 0.005mm |
| Speed range | 8000 rpm | Dimensions (length × width × height) | 3550×2700×2600 mm |
| Spindle motor power | 15KW | Approximate gross weight of machine tool | 8000kg |
| X-axis fast moving speed | 24 m/min | Chip removal | 1.Double-sided internal screw conveyor 2.Chain chip conveyor |
HANDEMO
Support custom services

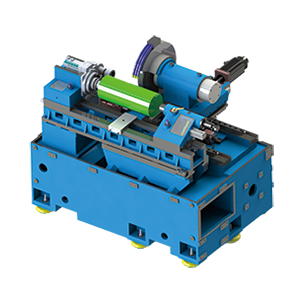

Moving column type
vertical machining center

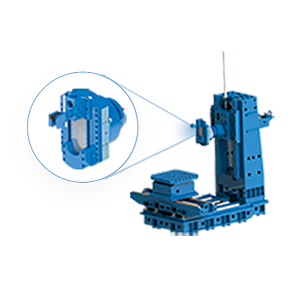

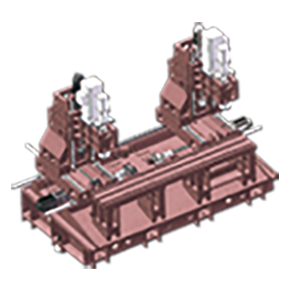

Double moving column
vertical machining center

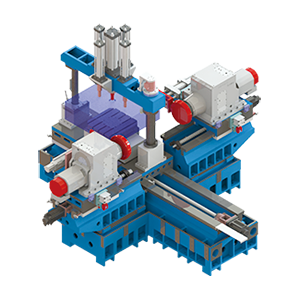

Double action column boring
horizontal machining center
MH320Grinding machine

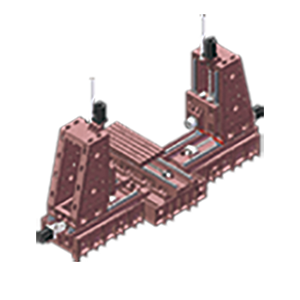

SMX85 double-sided
milling machine

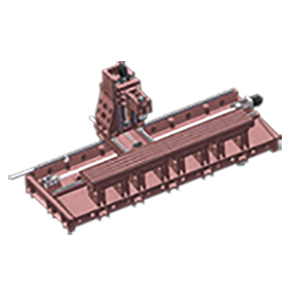

Planiscope
HANDEMO
Features
Advanced Tooling System for Enhanced Machining Efficiency
The VMC1370 comes with an advanced tooling system that includes a 24 – position tool magazine. This allows for quick and seamless tool changes, reducing non – productive time. The tooling system also features high – precision tool holders, ensuring accurate tool positioning and repeatability.

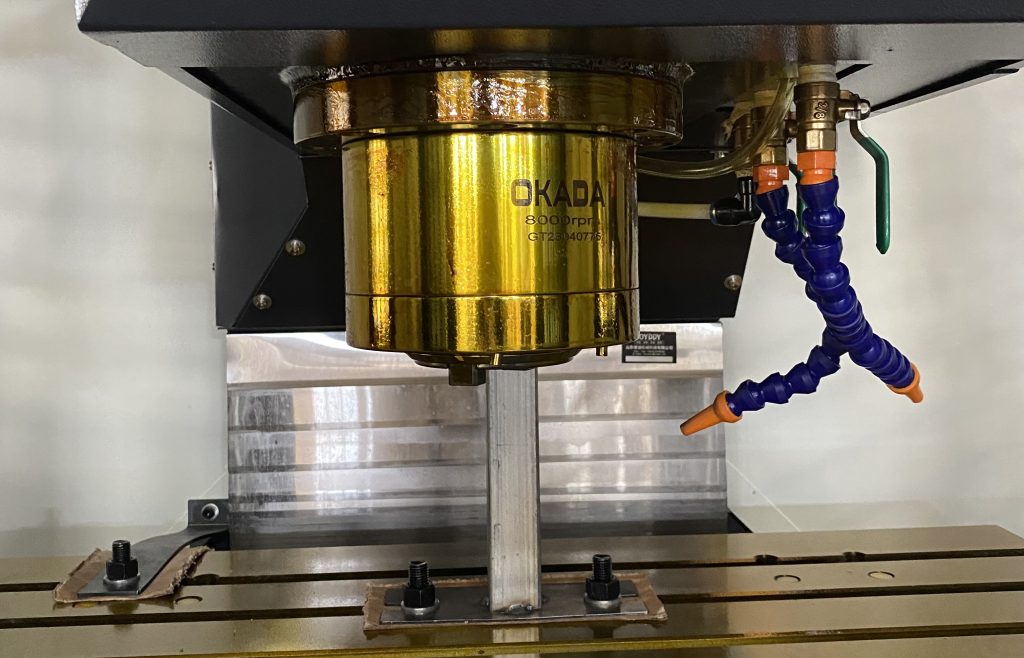

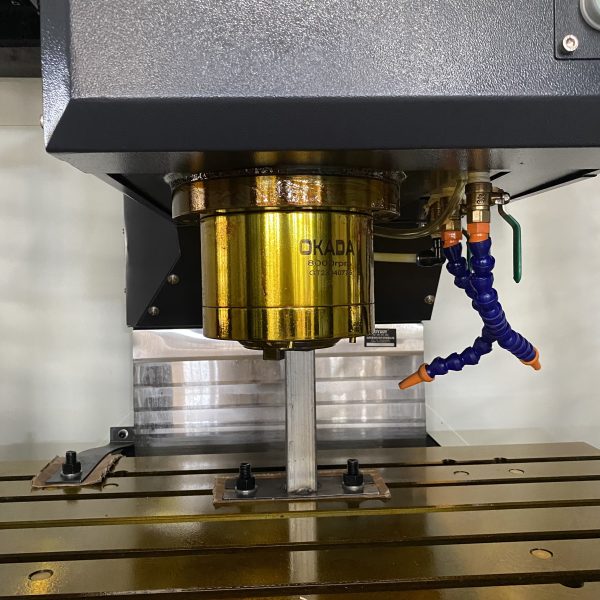

High - Speed Spindle for Exceptional Machining Power
The VMC1370 is equipped with a high – performance spindle that can reach speeds of up to 8000 RPM. Whether it’s rough milling for rapid material removal or fine milling for achieving a mirror – like surface finish, the spindle’s speed and torque capabilities ensure efficient and accurate machining.
Ultra - Precise Motion Control for Tight Tolerances
Our advanced motion control system, integrated with high – resolution encoders and precision ball screws, guarantees extremely accurate positioning and smooth movement of the machine axes.

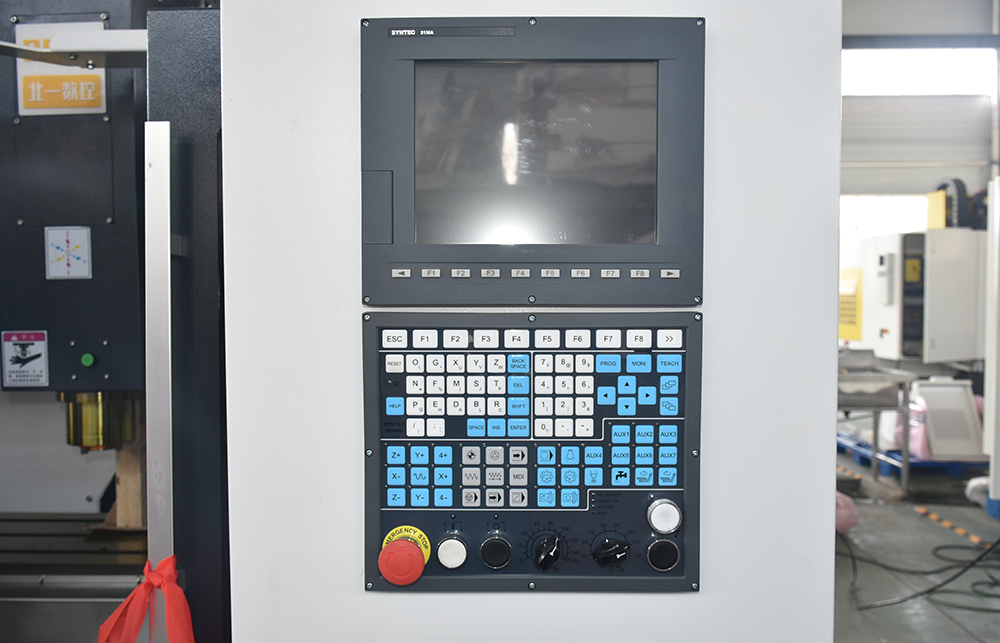

User - Friendly Operation Interface
Optional CNC system: Fanuc/Siemens/Syntec/GSK, the operation interface is simple and intuitive, the operation is simple and easy to use, even novice operators can quickly get started.
HANDEMO

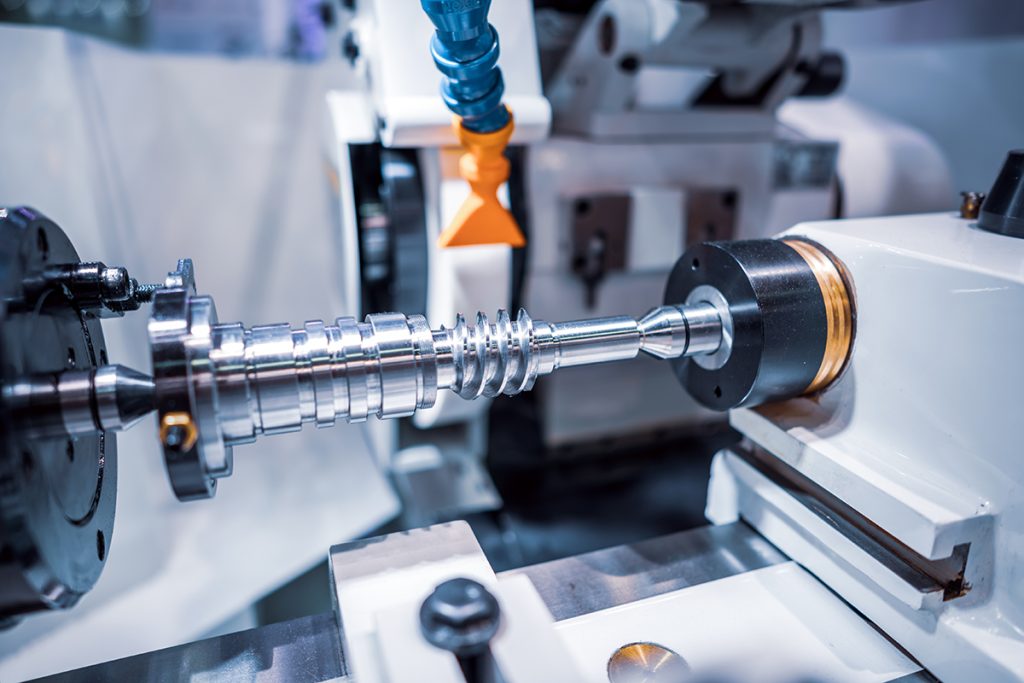

Application Areas
Aerospace
Automotive
Medical Device Manufacturing
- 24/7 online reception service
- On-site installation
- 5-year warranty
