TCK63-1500
The TCK63 – 1500 is an advanced CNC slant lathe engineered to meet the most demanding machining requirements. Its slant – bed design offers enhanced stability during high – speed operations and efficient chip evacuation. With a focus on precision, power, and versatility, this lathe is equipped with state – of – the – art features to handle a wide range of materials and workpiece sizes.
- High – Torque Spindle for Heavy – Duty Machining
- Ultra – Precise Control for Micron – Level Accuracy
- Extended Bed for Long – Shaft and Large – Scale Machining
HANDEMO
Parameters
| Product model | TCK63-1500 | Control system | KND |
|---|---|---|---|
| Maximum rotation diameter on the bed | 720mm | Tailstock sleeve taper | Mohs 5# |
| Maximum cutting length | 1500mm | Standard tool holder type | horizontal 12-station servo |
| Maximum cutting diameter | 500mm | External circular tool size | 32×32mm |
| Standard cutting diameter | 380mm | Boring bar diameter | Ф50mm |
| Maximum rotation diameter on the slide | 420mm | End tool holder | 32×32mm |
| Spindle end face type and code | A2-8 (optional A2-11) | Can I choose a tool nearby | Yes |
| Spindle aperture | 80mm | Maximum load-bearing capacity of disc parts | 350 (including accessories such as chucks) |
| Maximum bar diameter | 70mm | Maximum load-bearing capacity of shaft parts | 820 (including accessories such as chucks) |
| Spindle speed range | 50~3500 r/min | Machine dimensions (length * width * height) | 4370×2350×2235 mm |
| Spindle maximum output torque | 215Nm | Machine weight | 8500 kg |
| Main motor output power (30 minutes/continuous) |
18.5/15KW | Processing accuracy | IT7 |
| Chuck diameter | 10 inches (optional 12) | Workpiece roundness | 0.0025mm/Ф75 |
| Chuck type | hollow chuck | Workpiece cylindricity | 0.010mm / 150mm |
| X-axis fast moving speed | 12 m/min | Workpiece flatness | 0.010mm/Ф200mm |
| Z-axis fast moving speed | 16 m/min | Workpiece surface roughness | Ra1.25μm |
| X-axis travel | 250 mm | X-axis positioning accuracy | 0.008mm |
| Z-axis travel | 1520 mm | Z-axis positioning accuracy | 0.008mm |
| Tailstock stroke | 1400mm | X-axis repeat positioning accuracy | 0.004mm |
| Tailstock sleeve stroke | 138mm | Z-axis repeat positioning accuracy | 0.004mm |
HANDEMO
Features
High - Torque Spindle
Equipped with a powerful high – torque spindle, the TCK63 – 1500 can deliver up to 215 Nm of torque. This enables it to effortlessly handle heavy – duty cutting operations on tough materials such as stainless steel, alloy steel, and titanium.
Ultra - Precise Control
Our advanced control system, integrated with high – resolution encoders and advanced motion control algorithms, guarantees micron – level precision. The TCK63 – 1500 can achieve positioning accuracy of ±0.008 mm and repeatability accuracy of ±0.004 mm.
Extra - Long Bed

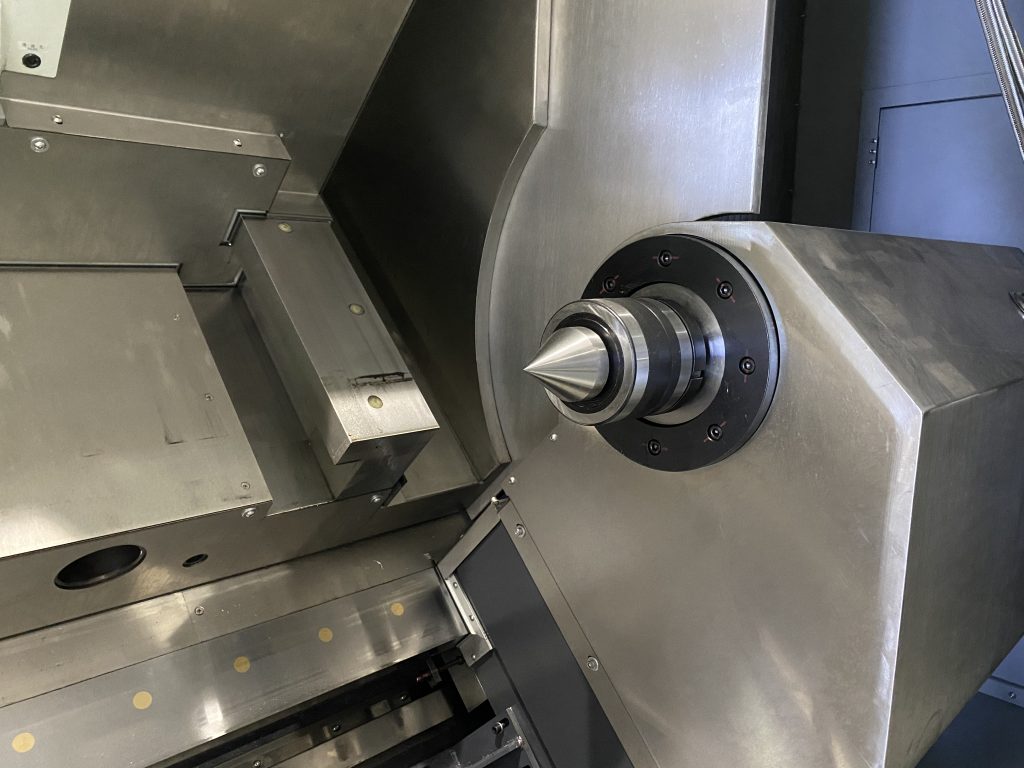

The extended bed of TCK63-1500 is designed for machining long shafts and large workpieces. The extra-long bed provides stable support for workpieces of various lengths and diameters, and can seamlessly process components such as wind turbine shafts, large diameter pipes and industrial machinery parts.
Intuitive Operation Interface
The user – friendly control panel of the TCK63 – 1500 features a large – screen touch display, making programming and operation a breeze. Operators can easily input machining parameters, monitor the machining process in real – time through live video feeds and graphical simulations, and make on – the – fly adjustments as needed.
HANDEMO
Application Areas
Aerospace
Automotive
Energy
- 24/7 online reception service
- On-site installation
- 5-year warranty
