TCK600SY
CNC Mill – Turn Machines – TCK600SY is a CNC machining equipment that combines turning and milling functions. It adopts a horizontal layout and has a dual-spindle design. It can complete a variety of complex machining operations in one clamping, greatly improving machining efficiency and accuracy.

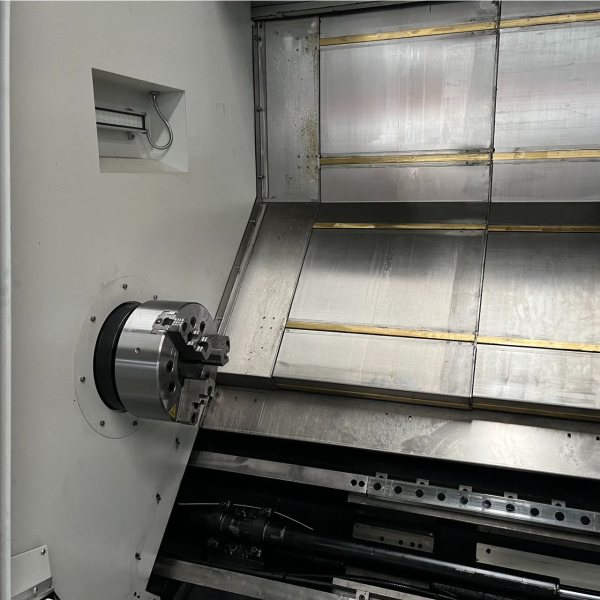

- The 45° inclined integrated bed improves chip removal performance.
- The BMT55 hard rail Y-axis powered turret offers superior rigidity.
- Dynamic docking accuracy is within 5 μm.
HANDEMO
Parameters
| Product model | TCK600SY | Control system | KND、fanuc、siemen、 or others |
|---|---|---|---|
| Maximum rotation diameter of lathe | 560mm | X-axis travel | 280mm |
| Maximum cutting length | 500mm | Y-axis travel | ±50mm |
| Maximum cutting diameter | 350mm | Z-axis travel | 550mm |
| Spindleendform | A2-6 | Spindlemotor power | 30(11)kw |
| Spindle hole diameter | 65 | X/Y/Z rapid shift speed | 30/10/30 |
| Spindle speed | 4500 r/min | Tool holder form | 12-station |
HANDEMO
Features
Advanced Multi-Tasking
Turning, milling, drilling & threading in a single setup, reducing production time by up to 35% vs. conventional methods.
Intuitive CNC Control
Optional CNC system: Fanuc/Siemens/Syntec/GSK, the operation interface is simple and intuitive, the operation is simple and easy to use, even novice operators can quickly get started.
12-Station Live Tooling
Equipped with radial and axial power tools for complex contours, cross-drilling & keyway cutting without secondary operations.
Compact Yet Powerful
Optimized for small to medium-sized precision parts, delivering high-accuracy machining in a space-saving footprint.
HANDEMO
Case Showcase
HANDEMO
Application Areas
Aerospace
Automotive
Mold and Die Manufacturing
- 24/7 online reception service
- On-site installation
- 5-year warranty
