High quality
5-Axis Turning and
Milling Machine
The integrated design of the column has higher stability than the traditional structure.
Five-Axis Series
The Five-Axis Turning and Milling Machine represents the pinnacle of advanced CNC machining, combining turning and milling capabilities in a single, fully integrated system. Designed for complex, high-precision components requiring multi-sided machining, this machine eliminates the need for multiple setups, reducing production time while enhancing accuracy.
Can realize
10-axis 5-link
- Dual electric spindle -dynamic docking accuracy of 0.003mm
- 40 tool libraries, HSK tool holder structure
- X-axis travel 700mm,Z-axis travel 1550mm
- Can process 600mm diameter, W-axis hard rail
- Swinging head linkage + 110 °
| FIVE AXIS LATHE | HTMC800S | HTMC800T |
|---|---|---|
| Rotary Diameter (mm) | 600 | 700/330 |
| Cutting diameter (mm) | 1200 | 600/330 |
| Machining length (mm) | 580 | 1500 |
| Spindle bore diameter | 87/75 | 86/75 |
| Bar diameter | 67/50 | 66/0 |
| C/A-axis travel | 360° | 360° |
| B-axis travel | ±110° | ±130° |
| Pendulum head spindle form | HSK-T63 | HSK-T63 |
| Tool magazine capacity | 40 | 24 |
| Y-axis travel(mm) | ±125 | ±125 |
| 5-AXIS GANTRY MILLING MACHINE | LH400 | LH500 |
|---|---|---|
| Workbench size (mm) | 400 | 500 |
| T-shaped groove width | 12H8 | 8-14H8 |
| Swing angle A-axis | ±120° | ±120° |
| Swing angle C-axis | ±360° | ±360° |
| x-axis travel(mm) | 600 | 600 |
| Y-axis travel (mm) | 1000 | 1000 |
| z-axis travel(mm) | 600 | 480 |
| Spindle taper hole | BT40D | BT40D |
| Spindle speed (rpm/min) | 12000 | 12000 |
| Spindle motor power | 13KW | 13KW |

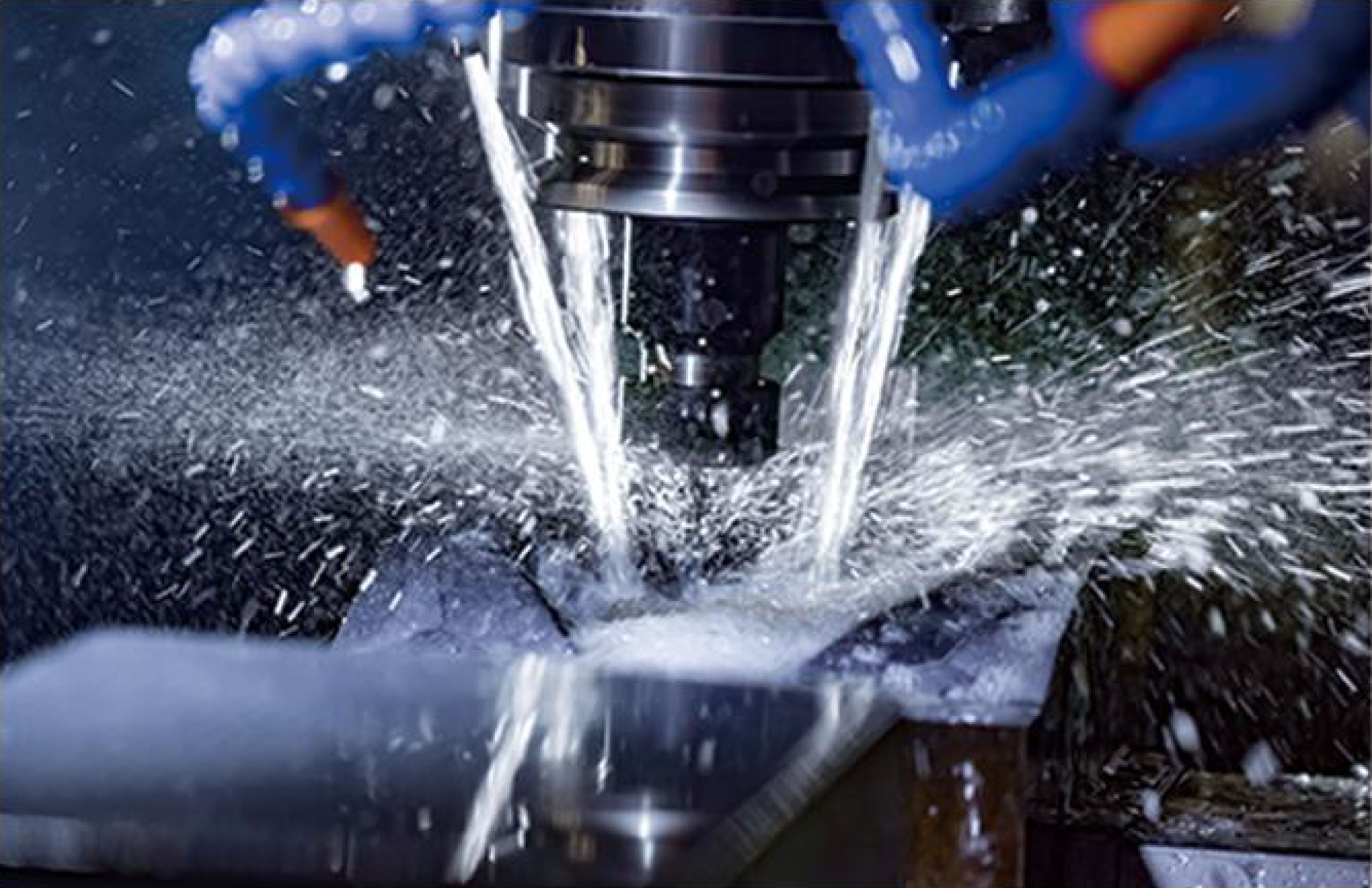

Milling spindle
It uses a high-power, high-speed electric spindle with a maximum speed of 6000 rpm, a rated torque of 100 N.m, and a HSK-T63 high-precision toolholder structure to meet most milling requirements.
B-axis structure
Permanent magnet synchronous motor is used for precise indexing.
Maximum torque: 1320Nm, ensuring rigidity during turning.
Not only horizontal front processing, but also angle pro-cessing
HANDEMO
Trusted by Industries for Precision Turning
Ready to Upgrade Your Production Line?
Buy now and enjoy free machine training！
HANDEMO
FAQ
How can I choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.
What's your main products of your company?
A: We specialized in all kinds of machines, such as CNC Lathe Machine, Vertical Machining Center, Lathe Machines and Customized machines.
Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City, Shandong Province, 277500 China. You are warmly welcomed to visit us.
What is your trade terms?
A : FOB, CFR and CIF all acceptable.
What's the Payment Terms ?
A : T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight.
What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free.
How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems.
