0.004mm accuracy
CNC Slant Bed Lathe
Unleash Precision, Efficiency, and Reliability for Your Production Needs.
CNC Slant Bed Lathe
CNC slant bed lathe is a CNC lathe designed for high-precision and high-efficiency turning. It adopts a slant bed structure, which combines the rigidity advantage and chip removal convenience. It is suitable for mass production of precision shafts, discs and complex parts.

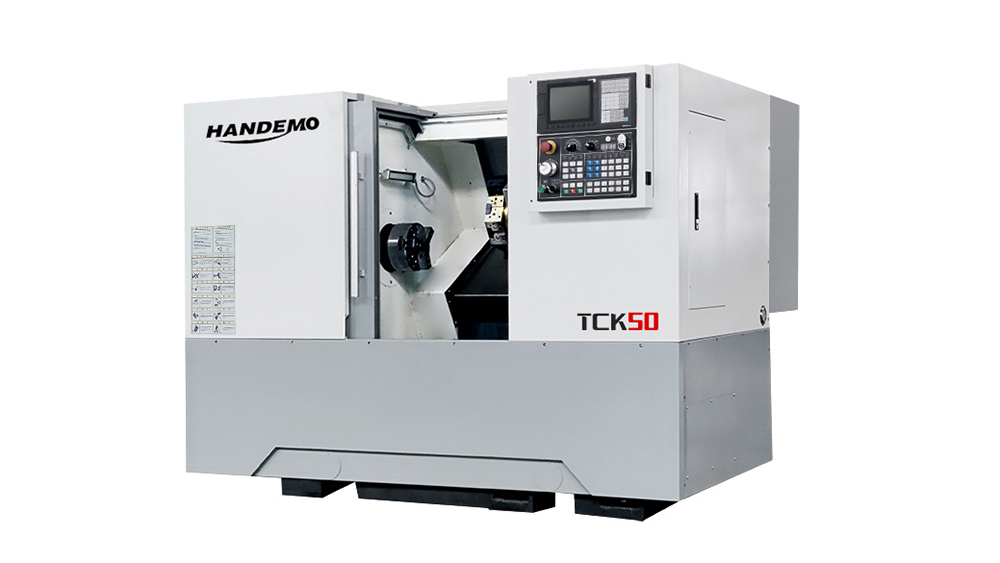

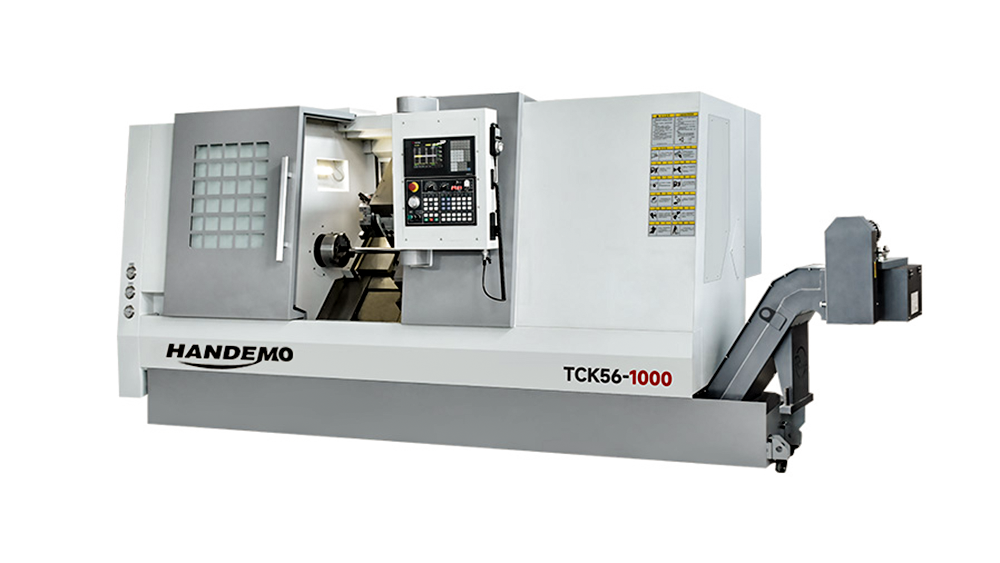

| TCK50/56 SERIES | TCK50 | TCK56-500 | TCK56-1000 |
|---|---|---|---|
| Rotation diameter (mm) | 500 | 560 | 560 |
| Cutting diameter (mm) | 360 | 350 | 350 |
| Processing length (mm) | 500 | 500 | 1000 |
| Main motor power | 11/15KW | 11/15KW | 11/15KW |
| Chuck diameter | 6″/8″/10″ | 6″/8″/10″/12″ | 6″/8″/10″/12″ |
| Spinde hole diameter (mm) | 65 | 65/80 | 65/80 |
| Bar diameter (mm) | 50 | 50/70 | 50/70 |
| Number of tools | 8/12 | 8/12 | 8/12 |

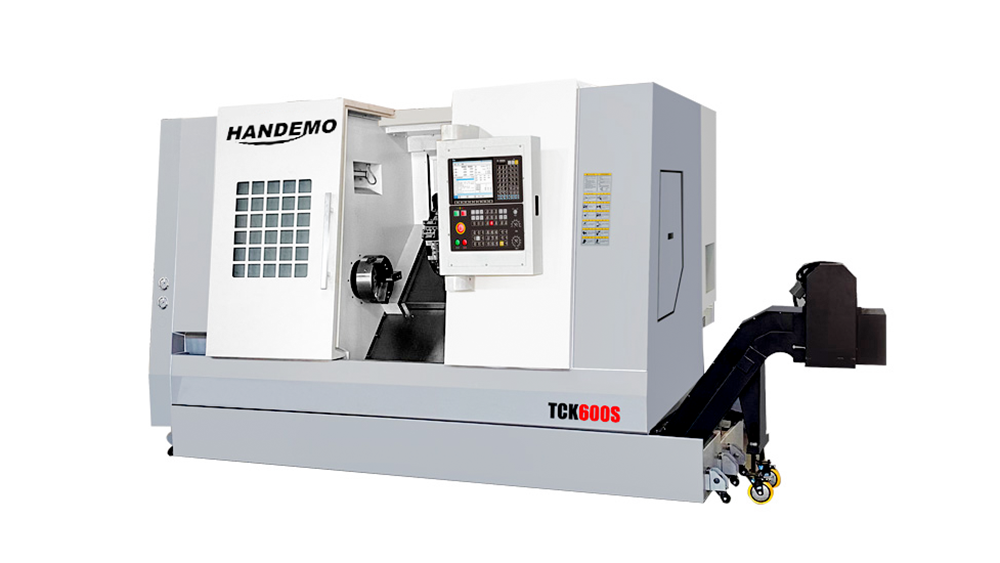

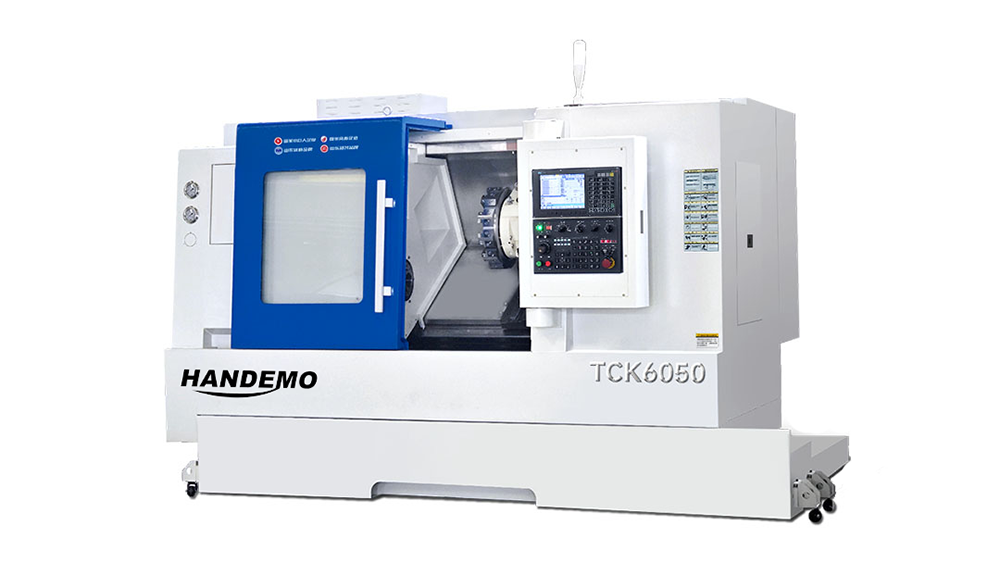

| TCK60 SERIES | TCK6050 | TCK600S | TCK600S-1000 |
|---|---|---|---|
| Rotation diameter (mm) | 560 | 600 | 600 |
| Cutting diameter (mm) | 500 | 550 | 500 |
| Processing length (mm) | 550 | 500 | 1000 |
| Main motor power | 11/15KW | 15/18.5KW | 15/18.5KW |
| Chuck diameter | 6″/8″/10″/12″ | 10″/12″/15″ | 10″/12″/15″ |
| Spinde hole diameter (mm) | 65/80 | 80 | 80 |
| Bar diameter (mm) | 50/70 | 70 | 70 |
| Number of tools | 8/12 | 12 | 12 |
| TCK70 SERIES | TCK70-1000 | TCK70-1500 | TCK70-2000 | TCK70-3000 |
|---|---|---|---|---|
| Rotation diameter (mm) | 720 | 720 | 720 | 720 |
| Cutting diameter (mm) | 500 | 500 | 630 | 630 |
| Processing length (mm) | 1000 | 1500 | 2000 | 3000 |
| Main motor power | 18.5KW | 18.5KW | 18.5KW | 18.5KW |
| Chuck diameter | 10″/12″/15″ | 10″/12″/15″ | 10″/12″/15″ | 10″/12″/15″ |
| Spinde hole diameter (mm) | 86/104 | 86/104 | 86/104 | 86/104 |
| Bar diameter (mm) | 75/90 | 75/90 | 75/90 | 75/90 |
| Number of tools | 12 | 12 | 12 | 12 |
Our exclusive services
“We look forward to hearing from you and helping you find the perfect machining solution for your business.”
Warranty
We offer a comprehensive 5 - year warranty on all our CNC slant bed lathes, ensuring your peace of mind.
Spare parts network
Relying on a complete spare parts storage network, we provide original spare parts in the shortest time.
Onsite training
We provide on-site guidance and training to ensure your team can quickly master equipment operation skills.
Inclined bed design
The bed tilt angle is 30 degrees/45 degrees, which provides good rigidity and greater stability.
Intelligent CNC system
Our CNC slant bed lathe offer flexible CNC system options. Choose from systems such as FANUC and Siemens, ensuring you get a control system that meets your specific machining needs and preferences.
8/12 station turret tool
Supports multi-station turret or power turret options, flexibly adapting to complex processing needs such as turning, milling, and drilling to improve production efficiency.
High precision ball screw
The transmission screw of the CNC lathe is a high-precision ball screw with a repeat positioning accuracy of up to 0.004mm.
Multiple structure display
Full hard rail structure
- The hard rail structure has strong overall rigidity and can withstand heavy cutting and large cutting forces.
- The X-axis adopts an inner rectangular steel rail.
- Suitable industry: For heavy shaft and disc parts processing.
Double-spindle turning center
- The dynamic docking accuracy of the double spindle is 5 degrees, and the processing accuracy is very high.
- One clamping can complete multiple processes, greatly saving equipment costs, land costs and labor costs.
- Suitable for industry: batch finishing of workpieces.

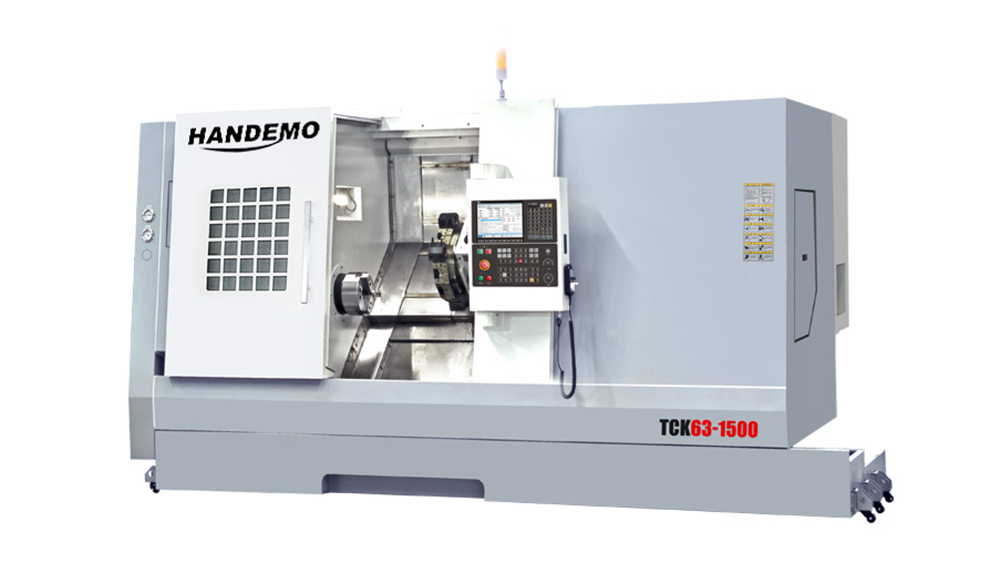

Special machine for long shafts
- The shaft processing length can be selected from 1 to 3 meters, with various models.
- Equipped with automatic chip removal machine, which makes operation simpler and cleaning more convenient.
- Suitable industry: various long shaft workpieces.
Special machine for discs
- Disc cutting diameter is large, up to 550MM.
- Heavy duty 125MM center height turret, disc opposite side 440MM.
- Suitable industry: various disc workpieces.
Trusted by Industries for Precision Turning
Choice for all industries
Our CNC slant bed lathes deliver top performance and reliability across industries.
Automotive: Engine parts, transmission components
Mechanical Engineering: High-precision machine parts
Medical Technology: Surgical instruments, implants
Aerospace: Critical aircraft components
