CNC Mill-Turn Machines
From Prototype to Mass Production – 40% Faster than Traditional Methods.
CNC Mill-Turn Machines
The turning-milling lathe can perform both axial and radial processing, and is a comprehensive processing method. Its processing technology includes milling, drilling, tapping, etc. The combined milling process of turning and milling is based on the workpiece as the reference point. It can perform high-speed cutting and cutting lubrication, so the processing efficiency is high. At the same time, drilling, tapping and other operations can also be performed.
- Shorten the process chain and enhance production efficiency:Combining turning and millingprocesses reduces manufacturing steps,boosting efficiency.
- CNC systems can be selected from FANUC, Siemens, etc.
- The tool setting arm can be installed for faster and more accurate tool setting, and a Renishawdetector can be installed to detect the workpiece size in real time.

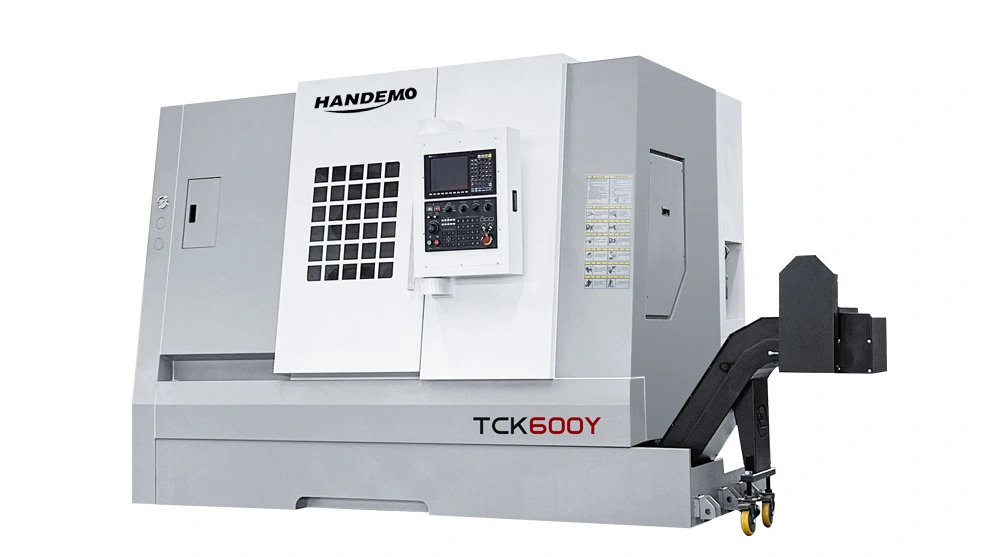

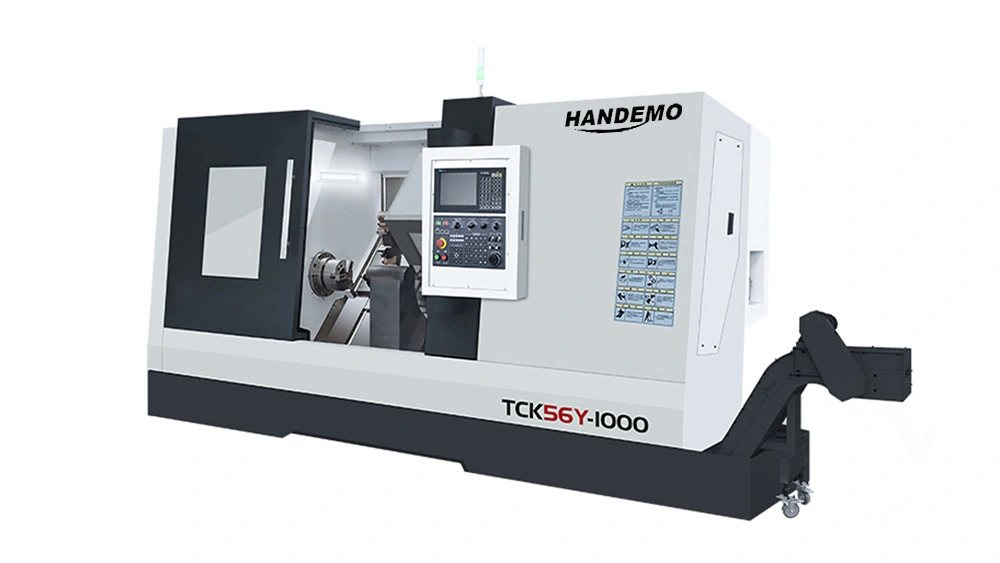

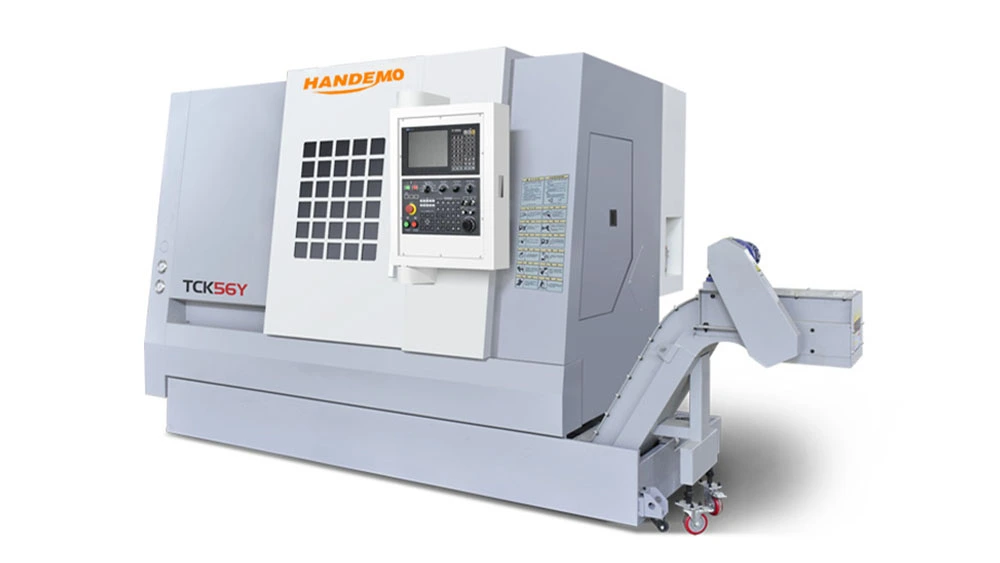

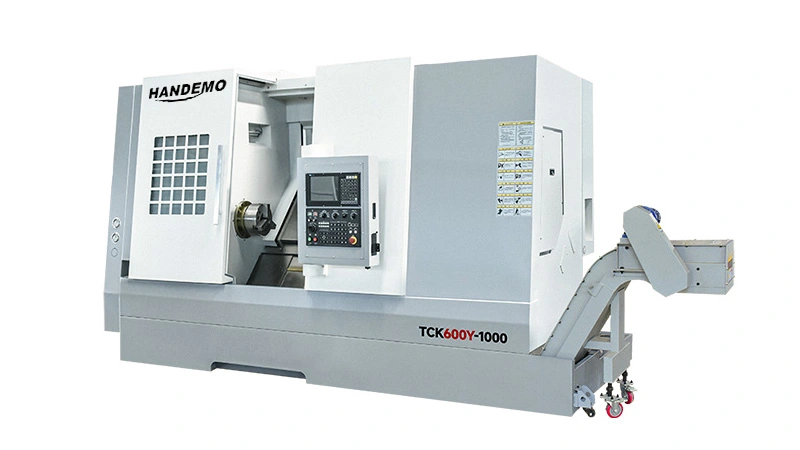

| TCK56Y/600Y SERIES | TCK56Y | TCK56Y-1000 | TCK600Y | TCK600Y-1000 |
|---|---|---|---|---|
| Rotation diameter (mm) | 500 | 560 | 600 | 600 |
| Cutting diameter (mm) | 360 | 350 | 430 | 430 |
| Processing length (mm) | 500 | 1000 | 500 | 1000 |
| Main motor power | 30KW | 30KW | 30KW | 30KW |
| Chuck diameter | 8″/10″ | 6″/8″/10″ | 8″/10″ | 8″/10″ |
| Spinde hole diameter (mm) | 65 | 65 | 65 | 65 |
| Bar diameter (mm) | 50 | 50 | 50 | 50 |
| Number of tools | ’12 | 12 | ’12 | ’12 |
| Drive tool/turret power | Radial/Axial | Radial/Axial | Radial/Axial | Radial/Axial |
| Y-axis travel (mm) | ±30 | ±30 | ±50 | ±50 |
| TCK70Y/80Y SERIES | TCK70Y-1000 | TCK70Y-2000 | TCK70Y-3000 | TCK80Y-1500 | TCK80Y-3000 |
|---|---|---|---|---|---|
| Rotation diameter (mm) | 720 | 720 | 720 | 1100 | 1100 |
| Cutting diameter (mm) | 480 | 480 | 480 | 680 | 680 |
| Processing length (mm) | 1000 | 2000 | 3000 | 1400 | 2900 |
| Main motor power | 37KW | 37KW | 37KW | 43 | 43 |
| Chuck diameter | 10″/12″/15″ | 10″/12″/15″ | 10″/12″/15″ | 12″/15″ | 12″/15″ |
| Spinde hole diameter (mm) | 85 | 85 | 85 | 104 | 104 |
| Bar diameter (mm) | 75 | 75 | 75 | 90 | 90 |
| Number of tools | 12 | 12 | 12 | 12 | 12 |
| Drive tool | Radial/Axial/7.5KW | Radial/Axial/7.5KW | Radial/Axial/7.5KW | Radial/Axial/7.5KW | Radial/Axial/7.5KW |
| Y-axis travel (mm) | ±75 | ±75 | ±75 | ±75 | ±75 |

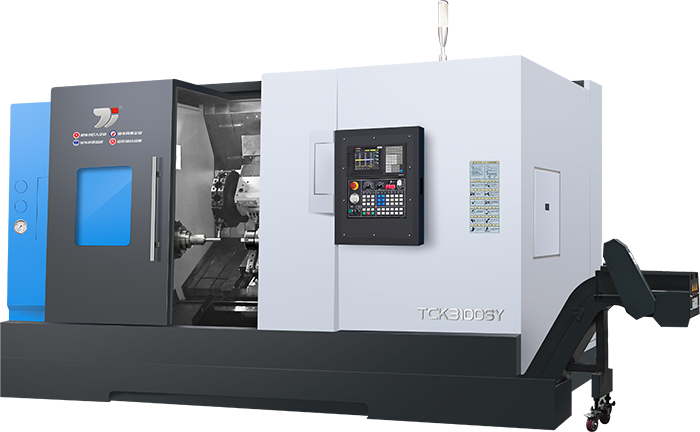

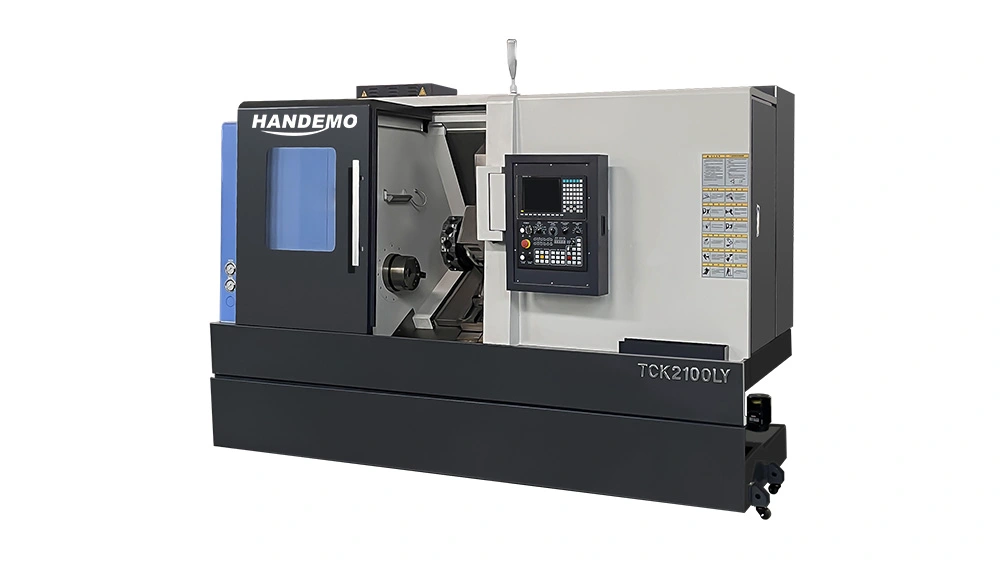

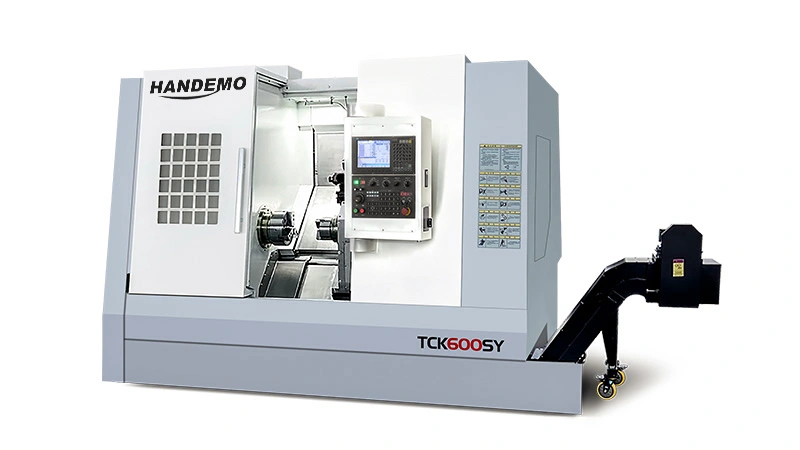

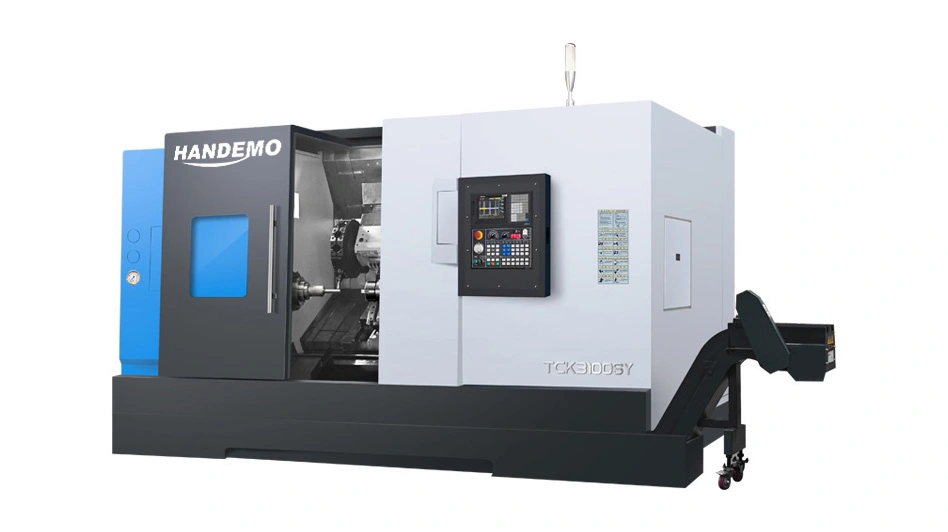

| DOUBLE SPINDLE SERIES INTERPOLATION Y-AXIS SERIES | TCK600SY | TCK3100SY | TCK2100SYY | TCK2100LY | TCK3100LY |
|---|---|---|---|---|---|
| Rotation diameter (mm) | 600 | 750 | 300 | 650 | 750 |
| Cutting diameter (mm) | 350 | 500 | 300 | 300 | 500 |
| Processing length (mm) | 500 | 1000 | 1000 | 500 | 1000 |
| Main motor power | 30KW/11KW | 37KW/30KW | / | 30KW | 37KW |
| Chuck diameter | 8″/6″ | 10’/8″ | 10’/8″ | 8’/10″ | 10’/12″ |
| Spinde hole diameter (mm) | 65 | 85 | / | 65 | 85 |
| Bar diameter (mm) | 50 | 75 | / | 50 | 75 |
| Number of tools | ’12 | 12 | 12 | 12 | 12 |
| Drive tool/turret power | Radial/Axial/5.5KW | Radial/Axial/7.5KW | / | Radial/Axial/5.5KW | Radial/Axial/7.5KW |
| Y-axis travel (mm) | ±50 | ±100 | ±100 | ±50 | ±100 |

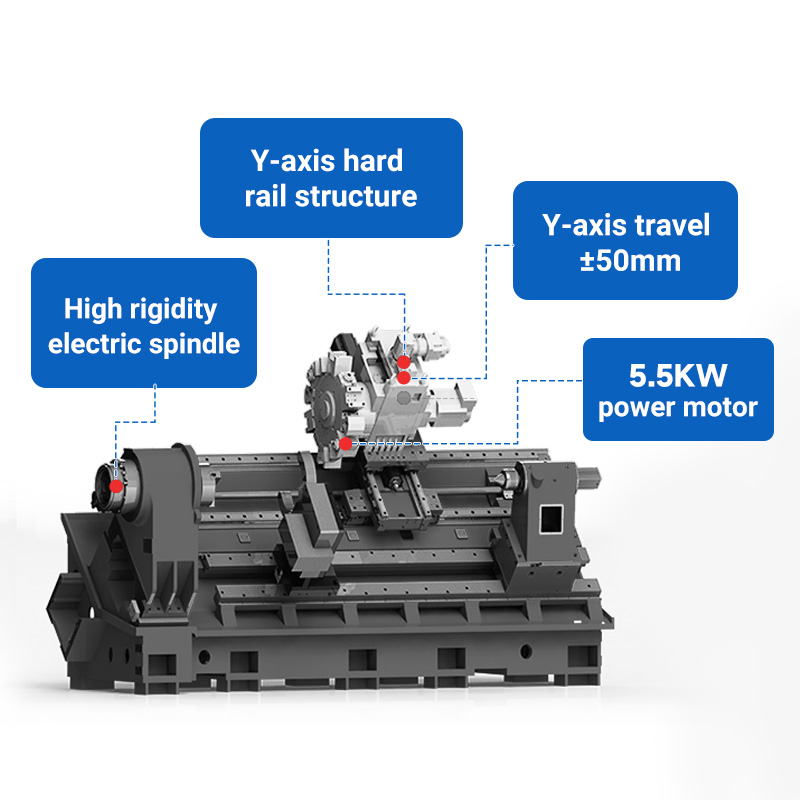

Straight Y turning and milling compound
- One clamping can realize turning, milling, drilling,tapping, boring and reaming multi-process processing.
- Save labor costs and land costs.
- Suitable industry: batch processing of high-precision and complex workpieces.

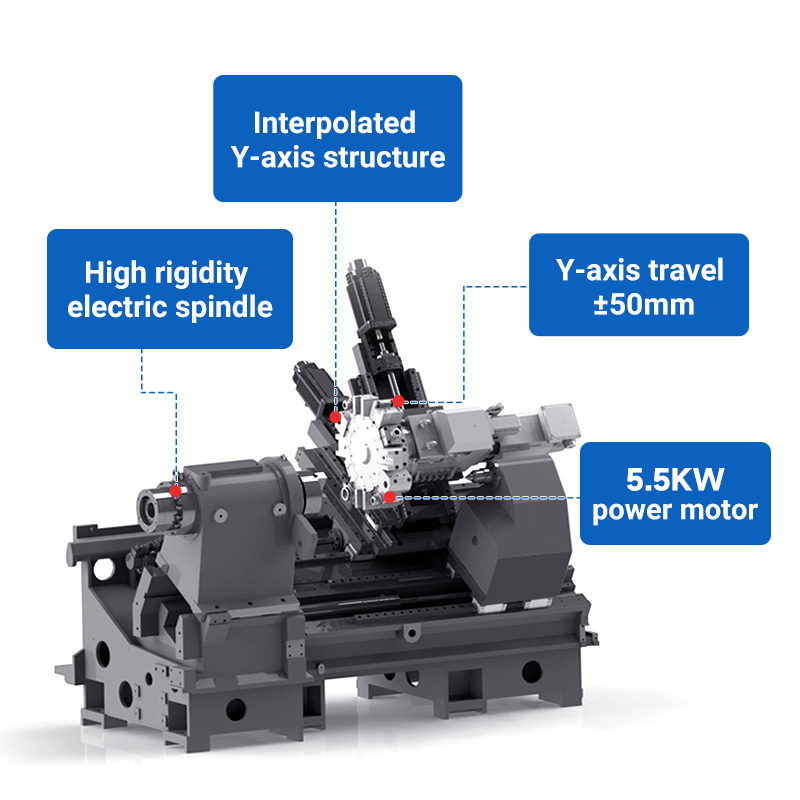

Interpolation Y-axis milling compound
- Doosan same interpolation Y structure, with oil-water separation.
- 30° beveled integral bed with stable cutting force, programmable hydraulic tailstock.
- Suitable industries: The tailstock adopts a rotary center structure to ensure the processing accuracy and stability of slender shafts.

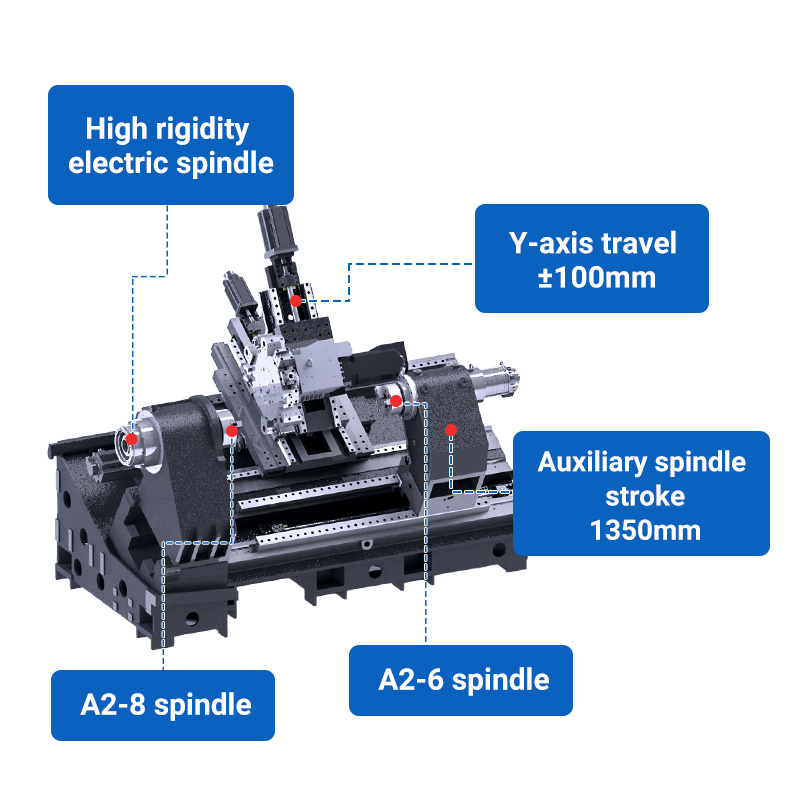

Dual spindle & interpolation Y-axis milling and turning compound
- Doosan same interpolation Y structure.
- One clamping can complete the whole sequence of turning,milling, planing, drilling, gear hobbing, etc.
- Suitable industries: aerospace, automobile manufacturing, equipment, mold manufacturing and energy equipment, etc.
Dual spindle & dual turret milling and turning
- One machine can replace 6 machines: replacing 2 lathes, 2 milling machines, and 2 automated trusses.
- Dual spindles and dual turrets for simultaneous processing, greatly shortening processing time.
- Suitable industries: automotive parts, aerospace, mold manufacturing, medical equipment and other high-precision industries.
