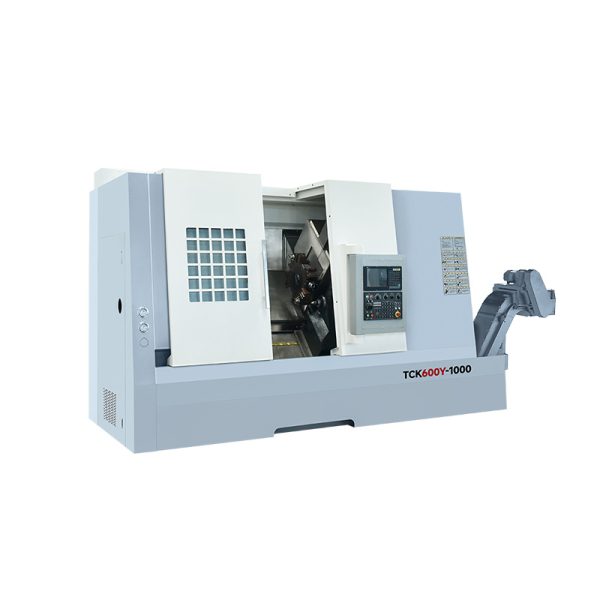

TCK600Y-1000
The TCK600Y – 1000 is a cutting – edge CNC mill – turn machine, engineered to perfection to meet the diverse and demanding requirements of modern manufacturing. By seamlessly integrating milling and turning operations into a single, high – performance platform, it offers a comprehensive and efficient machining solution.
- Advanced Motion Control for Tightest Tolerances
- Integrated Milling and Turning for Unrivaled Efficiency
- Intuitive CNC Interface for Effortless Operation
HANDEMO
Parameters
| Product model | TCK600Y-1000 | Control system | Fanuc, Siemens, Mitsubishi, Syntec and KND available |
|---|---|---|---|
| Max rotation diameter on the bed | 600mm | External cylindrical tool size | 25×25mm |
| Maximum cutting length | 1000mm | Boring tool size | Ф32 |
| Maximum cutting diameter | 430mm | Face tool size | 25×25mm |
| Standard cutting diameter | 340mm | 0° power head | BMT55-ER32 |
| Maximum rotation diameter on the slide | 400mm | 90° power head | BMT55-ER32 |
| Spindle end type and code | A2-6 Electric spindle | Can the tool be selected nearby | Yes |
| Spindle hole diameter | 65mm | Maximum load-bearing capacity of disc parts | 200 (including accessories such as chucks) |
| Maximum bar diameter | 50mm | Maximum load-bearing capacity of shaft parts | 500 (including accessories such as chucks) |
| Spindle speed range | 4500 r/min | Machine dimensions (length * width * height) | 3600×2100×2500mm |
| Spindle maximum output torque | 144Nm | Machine weight | 5400 kg |
| Spindle speed level | stepless speed change | Processing accuracy | IT6 |
| Main motor output power | 30Kw | Workpiece roundness | 0.0025mm/Ф75 |
| Chuck diameter | 8 inches | Workpiece cylindricality | 0.010mm / 150mm |
| Chuck type | Hollow hydraulic chuck | Workpiece flatness | 0.010mm/Ф200mm |
| X-axis fast moving speed | 30 m/min | Workpiece surface roughness | Ra1.25μm |
| Z-axis fast moving speed | 30 m/min | X-axis positioning accuracy | 0.008mm |
| X-axis travel | 280mm | Z-axis positioning accuracy | 0.008mm |
| Z-axis travel | 1200mm | Y-axis positioning accuracy | 0.01mm |
| Y-axis travel | ±50 mm | C-axis positioning accuracy | 63” |
| C-axis travel | 360 | X-axis repeat positioning accuracy | 0.004mm |
| Tailstock travel | 450mm | Z-axis repeat positioning accuracy | 0.004mm |
| Tailstock sleeve taper | Morse 4# small spindle | Y-axis repeat positioning accuracy | 0.006mm |
| Standard tool holder type | horizontal 12-station power tool turret | C-axis repeat positioning accuracy | 25” |
| Tool turret model | BMT55 |
HANDEMO
Features
Integrated Milling and Turning
The TCK600Y – 1000 combines milling and turning capabilities in a single machine, eliminating the need for multiple set – ups and reducing production time significantly.
Intuitive CNC Control Interface
Optional CNC system: Fanuc/Siemens/Syntec/GSK, the operation interface is simple and intuitive, the operation is simple and easy to use, even novice operators can quickly get started.
Advanced Motion Control
The TCK600Y – 1000 can achieve positioning accuracy of ±0.008 mm and repeatability accuracy of ±0.004 mm. This high level of precision ensures that every cut is made precisely as designed, resulting in high – quality parts that meet the strictest tolerances.
High - Torque, Ultra - Precise Spindle
Equipped with a high – performance spindle, the TCK600Y – 1000 can reach speeds of up to 4500 RPM and deliver a remarkable torque of 144 Nm.
