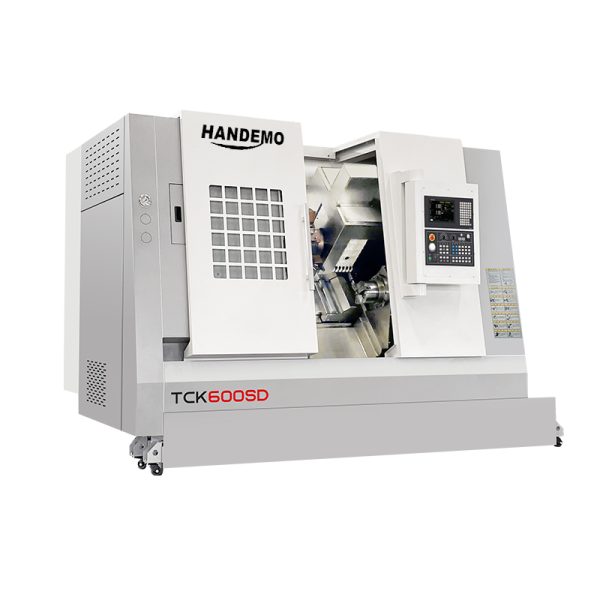

TCK600SD
The TCK600SD is an advanced CNC slant lathe meticulously engineered to meet the diverse and demanding needs of modern manufacturing. Its slant – bed design not only offers enhanced stability during high – speed operations but also enables efficient chip evacuation.
- Generous Cutting Dimensions and Robust Chuck
- Multi – Station Turret for Versatile Machining
- High – Precision Lead Screw and Linear Guide System
HANDEMO
Parameters
| Product model | TCK600SD | Control system | KND Controller K2000TF3ia |
|---|---|---|---|
| Maximum rotation diameter on the bed | 600mm | Distance from the first spindle chuck end face to the second spindle chuck end face | 10-485mm |
| Maximum cutting length | 470mm | X/Z axis fast moving speed | 15m/min |
| Maximum cutting diameter | 390mm | X axis travel | 255mm |
| Maximum rotation diameter on the slide | 350mm | Z axis travel | 600mm |
| Chuck diameter | 8 inches | Tool size | BMT55-ER32 |
| Spindle end type | A2-6 electric spindle | Tool holder type | BMT55 16-station power turret |
| Spindle hole diameter | 67mm | Can the tool be selected nearby | Yes |
| Bar diameter | 50mm | Maximum load-bearing capacity of disk-type workpieces | 200kg including accessories |
| Spindle speed range | 50～4500r/min | Maximum load-bearing capacity of shaft-type workpieces | 500kg including accessories |
| Spindle maximum output torque | 143Nm | Weight | 5000KG |
| Spindle speed level | stepless speed change | Dimensions | 3461×2083×2345mm |
| Main motor output power | 30KW |
HANDEMO
Features
Excellent Processing Size Range
The TCK600S performs outstandingly in terms of processing size. The maximum cutting diameter can reach 390mm, and the maximum cutting length is 470mm. At the same time, the chuck with a diameter of 8 inches provides a strong and stable clamping force.
High - Efficiency Turret Configuration
The turret equipped on the machine tool has 12 stations. The large number of tool – holding capacity reduces the time loss of frequent tool changes and significantly improves processing efficiency.
Precision Transmission Components
Equipped with Hiwin/PMI lead screw and linear guide rail, the transmission is smooth, the precision is well maintained, and the service life of the machine tool is extended.
Advanced CNC System
Optional CNC system: Fanuc/Siemens/Syntec/GSK, the operation interface is simple and intuitive, the operation is simple and easy to use, even novice operators can quickly get started.
HANDEMO
Application Areas
Aerospace
Automotive
Energy
